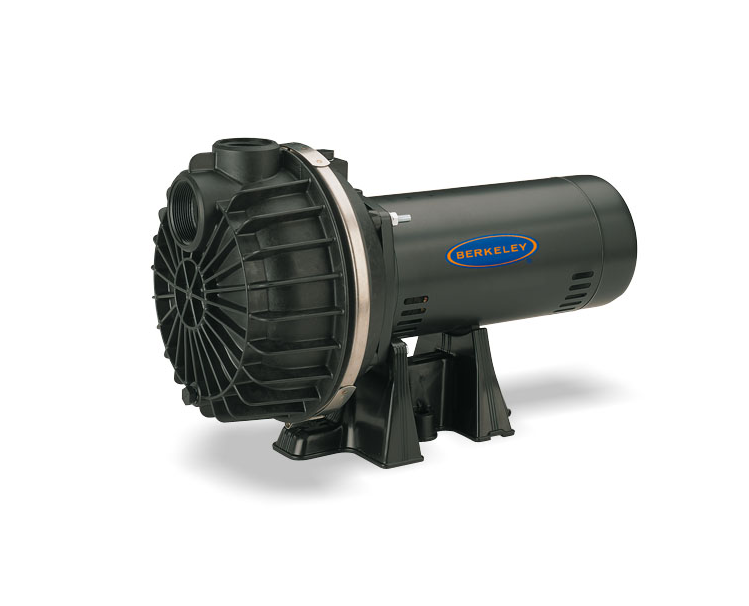

Quick-priming BPD Series Pumps feature lightweight construction in a self-priming design. These models offer a stronger pump body with reinforcement ribs and also a new 2" suction that is designed for the professional pump contractor.
Applications include: Lawn & Landscape Sprinkling Out of Tanks or Cisterns, and Light Chemical Transfer for Compatible Fluids
- Quality Construction - Fiberglass Reinforced Thermoplastic Provides Total Corrosion Resistance and High Resistance to Sandy Water
- Lightweight Design - Space-Age Materials Make These Pumps More Portable Than Conventional Cast Iron Pumps
- Composite Impeller - Highest Performance and Efficiency From Ultra-Smooth Materials Precision Molded For Perfect Balance
- Easily Serviced - Normal Wearing Parts Are Easily Accessible For Service And Replacement Without Disturbing Piping or Mounting
- Dustproof Cover - Electrical Components Protected From Dust and Insects
- Heavy-Duty Motor - 1 thru 2-1/2 HP Motors Designed For Continuous Operation Have Stainless Steel Shaft
- Dual Voltage Capability - 1 and 1-1/2 HP Motors Have Dual Voltage Motors And Are Shipped At The 230 Volt Setting. 2 and 2-1/2 HP are 230 Volt Setting Only
RESOURCES
SPECIFICATION
| Item # | BODY and BASE | Impeller | DIFFUSER | Shaft | Suction Port Size | Discharge Port Size |
|---|---|---|---|---|---|---|
Item # 16184 | BODY and BASE Fiberglass-Reinforced Thermoplastic | Impeller Engineered Polymer | DIFFUSER Polypropylene | Shaft 416 Stainless Steel | Suction Port Size 2" NPT | Discharge Port Size 1-1/2" NPT on 1 and 1-1/2 HP, 2" NPT on 2 and 2-1/2 HP |
