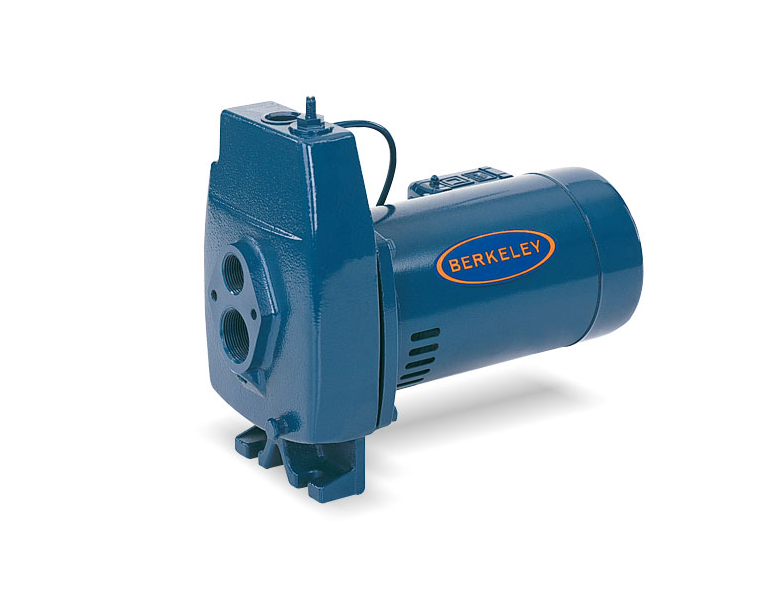

FL Series Pumps feature a proven self-priming "convertible" design. the same convertible jet can be attached to the pump for use in shallow well installations, or be utilized in 4" or larger wells for use as a double pipe deep well jet.
FL Series Pumps provide high capacities up to 11 GPM ... depths to 90 feet. They are rated for 30-50 PSI operation
- Quality Cast Iron Construction: Pump Body is Rugged One-Piece Unit, Specially Treated to Resist Corrosion. Drain Port Provided for Easy Winterizing
- Precision Molded Lexan Impeller for Perfect Balance..... Ultra Smooth for Highest Performance and Efficiency
- Precision Molded Diffuser Primes Faster, Handles More Air. Multi-Port, Precision-Molded Reinforced Polypropylene
- High Quality Pressure Switch With Adjustable Cut-In Setting. Fixed 20 PSI Differential
- Mechanical Shaft Seal With Precision Lapped Highly Polished Carbon-Ceramic Surfaces and Stainless Steel Construction
- Superior Insulations Materials on Motor Windings Protect Against Excessive Moisture and Contaminants ... Assures Prolonged Motor Life
- Balanced Rotor is Die Cast Under High Pressures for Uniform Performance and Greater Efficiency
- Shielded, Permanently Lubricated Ball Bearings, Extensively Tested to Ensure Extended Life and Smooth, Quiet Operation
- 416 Stainless Steel Pump and Motor Shaft for Maximum Corrosion Resistance. One Piece Threaded Shaft for Positive Impeller Drive and Alignment
- Dustproof Motor Canopy Protects All Electrical Components From Dirt, Dust and Insects. Ventilating Air Cannot Contaminate Vital Switching Components ... The Most Common Cause of Motor Failure
RESOURCES
SPECIFICATION
| Item # | Horsepower | Voltage | BODY and BASE | Impeller | DIFFUSER | Shaft | PRESSURE SWITCH PRE-SETS | PORT SIZES | SUCTION PORTS | Primary Product Attributes |
|---|---|---|---|---|---|---|---|---|---|---|
Item # 17915 | Horsepower | Voltage 115v / 230v, 60 Hz | BODY and BASE Close-Grained Cast Iron | Impeller Lexan® | DIFFUSER Reinforced Polypropylene | Shaft One-Piece Threaded 416 Stainless Steel | PRESSURE SWITCH PRE-SETS 30 - 50 PSI | PORT SIZES Suction: 1-1/4" / Drive: 1" / Discharge: 1" | SUCTION PORTS Drive-Over-Suction | Primary Product Attributes |
Item # 5FL | Horsepower 1/2 | Voltage | BODY and BASE | Impeller | DIFFUSER | Shaft | PRESSURE SWITCH PRE-SETS | PORT SIZES | SUCTION PORTS | Primary Product Attributes |
Item # 5FLJ | Horsepower 1/2 | Voltage | BODY and BASE | Impeller | DIFFUSER | Shaft | PRESSURE SWITCH PRE-SETS | PORT SIZES | SUCTION PORTS | Primary Product Attributes |
Item # 7FL | Horsepower 3/4 | Voltage | BODY and BASE | Impeller | DIFFUSER | Shaft | PRESSURE SWITCH PRE-SETS | PORT SIZES | SUCTION PORTS | Primary Product Attributes |
Item # 7FLJ | Horsepower 3/4 | Voltage | BODY and BASE | Impeller | DIFFUSER | Shaft | PRESSURE SWITCH PRE-SETS | PORT SIZES | SUCTION PORTS | Primary Product Attributes |
