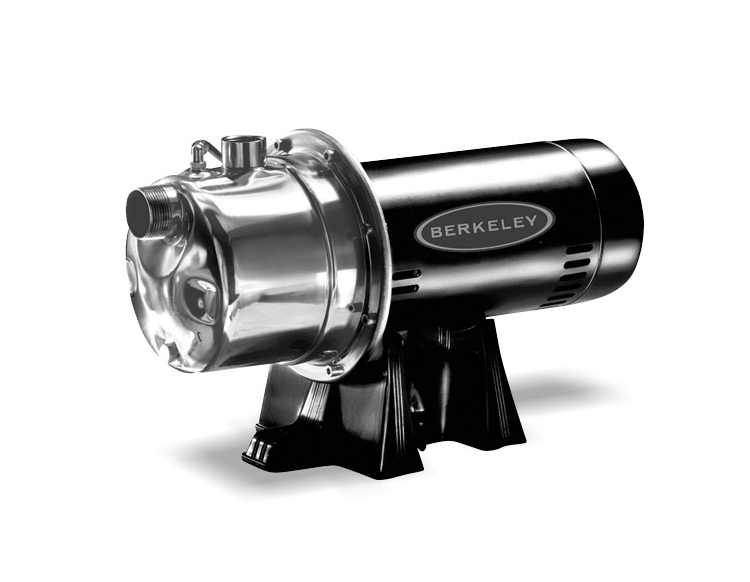

ClearJet models provide excellent performance with good pressure for wells to 25' deep. Self-priming after the priming chamber has been filled with water.
- Stainless Steel Pump Body Provides Maximum Resistance To Corrosion
- Built-In Jet Made of High Strength Thermoplastic Components
- Mechanical Shaft Seal with Highly Polished Carbon-Ceramic Faces and Stainless Steel Components
- Superior Insulation Materials Protect Motor Windings Against Excessive Moisture and Contaminants
- Dynamically Balanced Rotor is Die Cast Under High Pressure For Uniform Performance and Greater Efficiency
- Heavy-Duty Ball Bearings: Shielded, Permanently Lubricated Bearings, Extensively Tested To Ensure Extended Life and Smooth, Quiet Operation
- Stainless Steel Pump and Motor Shaft Provides Maximum Corrosion Resistance; One-Piece Threaded Shaft for Positive Impeller Drive and Alignment
- Dustproof Motor Cover Protects All Electrical Components From Dirt, Dust, and Insects. Ventilating Air Cannot Contaminate Vital Switching Components
- Quality Pressure Switch with Fixed 20 PSI Differential
RESOURCES
SPECIFICATION
| Item # | Horsepower | Voltage | MAXIMUM LIQUID TEMP | MAX INLET PRESSURE | AVERAGE PRIMING TIME AT 20 FEET | BODY | JET ASSEMBLY DIFFUSER IMPELLER | Shaft | BASE | Primary Product Attributes |
|---|---|---|---|---|---|---|---|---|---|---|
Item # 17858 | Horsepower Available in 3/4 or 1 HP | Voltage 115v / 230v, 60 Hz | MAXIMUM LIQUID TEMP 122 degrees F (50 degrees C) | MAX INLET PRESSURE 50 PSI | AVERAGE PRIMING TIME AT 20 FEET 3/4 HP: 4.2 minutes / 1 HP: 4.2 minutes | BODY 304 Stainless Steel | JET ASSEMBLY DIFFUSER IMPELLER NORYL (R) | Shaft One-Piece Threaded, 416 Stainless Steel | BASE Polypropylene | Primary Product Attributes |
