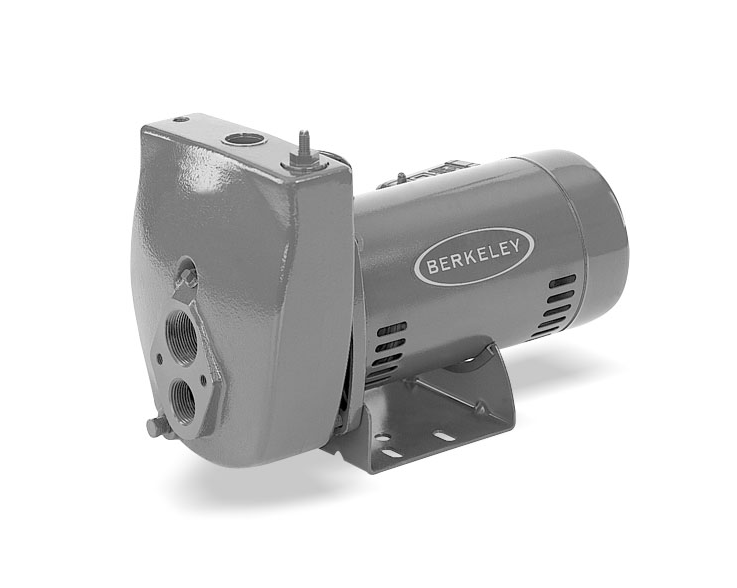

The ProJet SL convertible jet pumps offer a proven cast iron self-priming design available in 1/2 thru 1-1/2 HP models. The ProJet SL convertible jets utilize Berkeley built-in regulators offering easier priming and better range of performance from a complete line of shallow well, 4" double pipe, 2" and 3" single pipe jet packages.

  • Quality Cast Iron Construction: Pump Body is Rugged One-Piece Unit, Specially Treated to Resist Corrosion. Drain Port Provided for Easy Winterizing
  • Precision Molded NORYL Impeller for Perfect Balance. Ultra Smooth for Highest Performance and Efficiency
  • Precision Molded Diffuser Primes Faster, Handles More Air. Multi-Port, Precision-Molded Reinforced Polypropylene
  • High Quality Pressure Switch With Adjustable Cut-In Setting. Fixed 20 PSI Differential
  • Mechanical Shaft Seal With Precision Lapped Highly Polished Carbon-Ceramic Surfaces and Stainless Steel Construction
  • Superior Insulations Materials on Motor Windings Protect Against Excessive Moisture and Contaminants .... Assures Prolonged Motor Life
  • Balanced Rotor is Die Cast Under High Pressures for Uniform Performance and Greater Efficiency
  • Shielded, Permanently Lubricated Ball Bearings, Extensively Tested to Ensure Extended Life and Smooth, Quiet Operation
  • 416 Stainless Steel Pump and Motor Shaft for Maximum Corrosion Resistance. One Piece Threaded Shaft for Positive Impeller Drive and Alignment
  • Dustproof Motor Canopy Protects All Electrical Components From Dirt, Dust and Insects. Ventilating Air Cannot Contaminate Vital Switching Components ... The Most Common Cause of Motor Failure

RESOURCES

SPECIFICATION

Item #Primary Product AttributesHorsepowerVoltageBODY and SEAL PLATEImpellerDIFFUSERShaftBASEMAX LIQUID TEMPMAX INLET PRESSUREPRESSURE SWITCH PRE-SETPORT SIZESSUCTION PORTS
Item #
17914
Primary Product Attributes

Horsepower
Available in 1/2 thru 1-1/2 HP
Voltage
115 / 230 volts, 60 Hz
BODY and SEAL PLATE
Close-Grained Cast Iron
Impeller
High Strength NORYL®
DIFFUSER
Reinforced Polypropylene w/ Brass Wear Ring
Shaft
One-Piece Threaded 416 Stainless Steel
BASE
10-gauge Steel
MAX LIQUID TEMP
140 degrees F (60 degrees C)
MAX INLET PRESSURE
50 PSI
PRESSURE SWITCH PRE-SET
30 - 50 PSI
PORT SIZES
Suction: 1-1/4" / Drive: 1" / Discharge: 1"
SUCTION PORTS
Suction-Over-Drive
