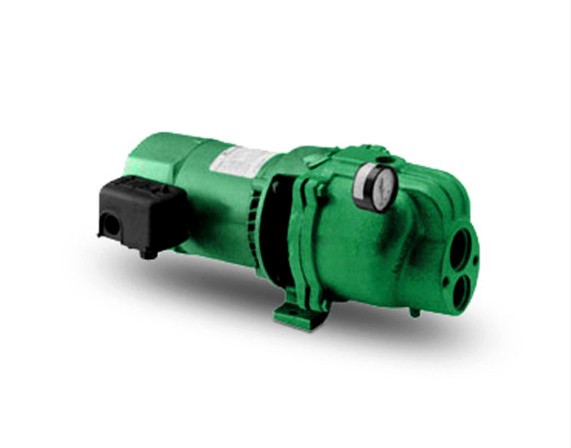

Myers convertible jet pumps provide all the water and pressure needed for today's family living needs. High-quality materials and simplified construction combine for excellent performance in shallow and deep wells. The same twin ejector is used for both types of well service.

HC series is a single stage pump while the HCM Series is multiple stage for higher performance levels.

  • Heavy-duty cast iron case construction
  • Primes easily under maximum shallow well conditions
  • Balanced no-lead silicon bronze impeller for smooth operation
  • Fast connect flanges eliminate threading and fitting at pipe end
  • Stream-flo design provides optimum hydraulic performance
  • Durable cast iron pressure regulator included
  • Pressure switch and pressure gauge included

RESOURCES

SPECIFICATION

Item #Body ConstructionMAX CAPACITYFLOW at 10-foot LIFT and 40 PSIMAX LIFTMAX SHUT-OFF PRESSUREMAX TOTAL PRESSURE Inlet + Pump PressurePRESSURE SWITCH SETTINGSSUCTION SIZEDRIVE SIZEDISCHARGE SIZEAMP DRAW full loadVoltageRECOMMENDED BREAKERMAXIMUM WATER TEMPERATUREMotorImpellerMOTOR SHAFT
Item #
HC
Body Construction
Heavy Duty Cast Iron
MAX CAPACITY
22.5 GPM (HCM150 in Shallow Well Setup)
FLOW at 10-foot LIFT and 40 PSI
960 GPM (HCM100 in Shallow Well Setup)
MAX LIFT
150' (HCM150 in Deep Well Setup)
MAX SHUT-OFF PRESSURE
80 PSI
MAX TOTAL PRESSURE Inlet + Pump Pressure
HC Models: 135 PSI / HCM50: 160 PSI / HC200 & HC250: 165 PSI
PRESSURE SWITCH SETTINGS
(Varies by Model)
SUCTION SIZE
1-1/4" NPT
DRIVE SIZE
1-1/4" NPT
DISCHARGE SIZE
3/4" NPT or 1" NPT (model dependent)
AMP DRAW full load

Voltage
230v / 115v AC, 60 Hz
RECOMMENDED BREAKER

MAXIMUM WATER TEMPERATURE

Motor
Two Compartment, 115v/230v
Impeller
No-Lead Silicon Bronze
MOTOR SHAFT
Stainless Steel
Item #
HC50
Body Construction

MAX CAPACITY

FLOW at 10-foot LIFT and 40 PSI

MAX LIFT

MAX SHUT-OFF PRESSURE

MAX TOTAL PRESSURE Inlet + Pump Pressure

PRESSURE SWITCH SETTINGS

SUCTION SIZE

DRIVE SIZE

DISCHARGE SIZE

AMP DRAW full load

Voltage

RECOMMENDED BREAKER

MAXIMUM WATER TEMPERATURE

Motor

Impeller

MOTOR SHAFT

Item #
HCM50
Body Construction

MAX CAPACITY

FLOW at 10-foot LIFT and 40 PSI

MAX LIFT

MAX SHUT-OFF PRESSURE

MAX TOTAL PRESSURE Inlet + Pump Pressure

PRESSURE SWITCH SETTINGS

SUCTION SIZE

DRIVE SIZE

DISCHARGE SIZE

AMP DRAW full load

Voltage

RECOMMENDED BREAKER

MAXIMUM WATER TEMPERATURE

Motor

Impeller

MOTOR SHAFT

Item #
HCM100
Body Construction

MAX CAPACITY

FLOW at 10-foot LIFT and 40 PSI

MAX LIFT

MAX SHUT-OFF PRESSURE

MAX TOTAL PRESSURE Inlet + Pump Pressure

PRESSURE SWITCH SETTINGS

SUCTION SIZE

DRIVE SIZE

DISCHARGE SIZE

AMP DRAW full load

Voltage

RECOMMENDED BREAKER

MAXIMUM WATER TEMPERATURE

Motor

Impeller

MOTOR SHAFT
