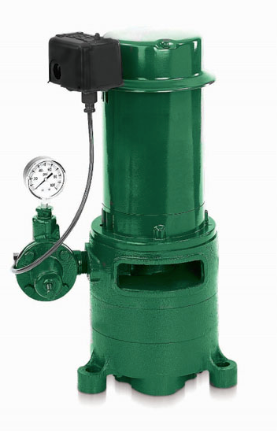

MVPH series deep well jet pumps feature over-the-well "bolt-on" capability with a special casing adapter for 2" and 3" single pipe installations, and adapter flanges for adapting all double pipe installations.
- Quality Construction - Precision-machined, close-grained cast iron pump body and base are specially treated to resist corrosion.
- Automatic Pressure Regulator - Faster-acting and quieter, design eliminates "hunting" for correct drive pressure. New improved stem and guide are precisely molded to assure efficient, trouble-free performance on all deep wells.
- Motor Windings - Superior insulation materials protect against excessive moisture and contaminants to ensure prolonged motor life.
- Dustproof Cover - All electrical components are protected from dirt, dust and insects by a dustproof canopy. Ventilating air cannot contaminate vital switching components. This eliminates the most common cause of motor failure.
RESOURCES
SPECIFICATION
| Item # | Body Construction | Horsepower | MAXIMUM CAPACITY | FLOW at 50-foot LIFT and 40 PSI | MAX LIFT | MAX SHUT-OFF PRESSURE | PRESSURE SWITCH SETTING | SUCTION SIZE | DRIVE SIZE | DISCHARGE SIZE | AMP DRAW full load | Voltage | RECOMMENDED BREAKER | MAXIMUM WATER TEMPERATURE |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Item # MVPH Series | Body Construction Cast Iron | Horsepower | MAXIMUM CAPACITY 12.2 GPM | FLOW at 50-foot LIFT and 40 PSI 6.8 - 12.2 GPM (depending upon jet selection) | MAX LIFT 320' | MAX SHUT-OFF PRESSURE 192 PSI | PRESSURE SWITCH SETTING 30/50 | SUCTION SIZE 1-1/4" NPT | DRIVE SIZE 1-1/4" NPT | DISCHARGE SIZE 1" NPT | AMP DRAW full load Model and Voltage Dependent | Voltage MVPH100: 230/115v MVPH150 & MCPH200: 230v | RECOMMENDED BREAKER | MAXIMUM WATER TEMPERATURE 140 F (60 C) |
Item # MVPH-100 | Body Construction | Horsepower 1 | MAXIMUM CAPACITY | FLOW at 50-foot LIFT and 40 PSI | MAX LIFT | MAX SHUT-OFF PRESSURE | PRESSURE SWITCH SETTING | SUCTION SIZE | DRIVE SIZE | DISCHARGE SIZE | AMP DRAW full load | Voltage | RECOMMENDED BREAKER | MAXIMUM WATER TEMPERATURE |
Item # MVPH-150 | Body Construction | Horsepower 1-1/2 | MAXIMUM CAPACITY | FLOW at 50-foot LIFT and 40 PSI | MAX LIFT | MAX SHUT-OFF PRESSURE | PRESSURE SWITCH SETTING | SUCTION SIZE | DRIVE SIZE | DISCHARGE SIZE | AMP DRAW full load | Voltage | RECOMMENDED BREAKER | MAXIMUM WATER TEMPERATURE |
Item # MVPH-200 | Body Construction | Horsepower 2 | MAXIMUM CAPACITY | FLOW at 50-foot LIFT and 40 PSI | MAX LIFT | MAX SHUT-OFF PRESSURE | PRESSURE SWITCH SETTING | SUCTION SIZE | DRIVE SIZE | DISCHARGE SIZE | AMP DRAW full load | Voltage | RECOMMENDED BREAKER | MAXIMUM WATER TEMPERATURE |
