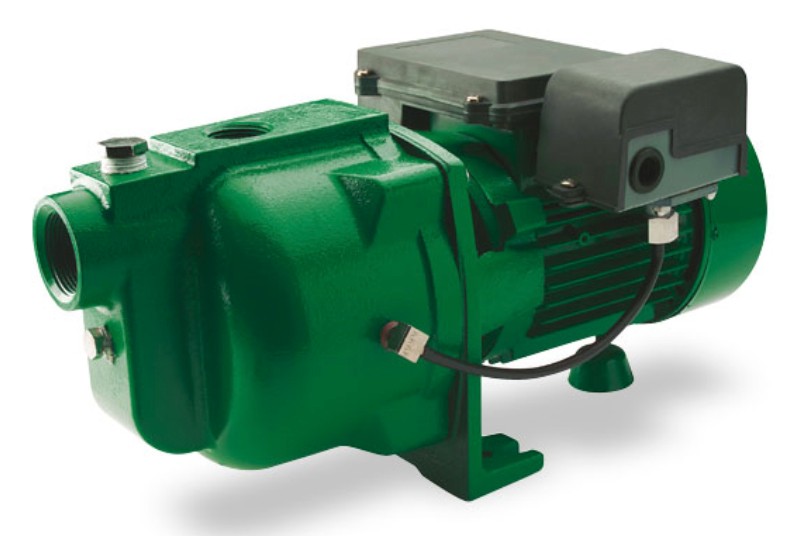

Myers Quick Draw Jet Pumps prime quickly, deliver strong performance, and feature a moisture and insect proof motor for optimum reliable service. These pumps feature a large capacity top suction case and internal priming plate for quick and reliable priming. The motor provides dependable long life to all critical bearings with electrical connections enclosed and protected from potential moisture and insect problems. The 1/2, 3/4 and 1 HP pumps are quick to deliver water for home, farm, commercial and industrial water systems.
- Large capacity top suction case, internal priming plate, and separate priming plug on case add up to Quick and Easy Priming
- Dual voltage motor with protection from moisture, insect, or dirt damage to electrical components for maximum life
- Maximum pressures to 70 psi; flow capabilities to 23 GPM.
- Convenient back pullout design along with nozzle clean-out mean easy serviceability
- Precision lapped and polished carbon/ceramic shaft seal with buna and stainless steel components
- Direct mount pressure switch is factory preset to 30-50 psi
RESOURCES
SPECIFICATION
| Item # | Body Construction | Horsepower | MAXIMUM CAPACITY | FLOW at 10-foot LIFT and 40 PSI | MAX LIFT | Shut-Off Pressure | MAXIMUM INLET PRESSURE | PRESSURE SWITCH SETTING | SUCTION SIZE | DRIVE SIZE | DISCHARGE SIZE | AMP DRAW full load | Voltage | RECOMMENDED BREAKER | MAXIMUM WATER TEMPERATURE | Impeller |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Item # D (Quick Draw) Series - Myers | Body Construction Cast Iron | Horsepower | MAXIMUM CAPACITY 27 GPM | FLOW at 10-foot LIFT and 40 PSI 12.0 GPM (average - model QD100S) | MAX LIFT 25' | Shut-Off Pressure 65 PSI | MAXIMUM INLET PRESSURE | PRESSURE SWITCH SETTING 30 - 50 PSI | SUCTION SIZE 1-1/4" NPT | DRIVE SIZE n/a | DISCHARGE SIZE 1" NPT | AMP DRAW full load | Voltage 230v / 115v AC, 60 Hz | RECOMMENDED BREAKER Voltage and Model Dependent | MAXIMUM WATER TEMPERATURE | Impeller Precision-molded thermoplastic |
Item # QD50S | Body Construction | Horsepower 1/2 | MAXIMUM CAPACITY | FLOW at 10-foot LIFT and 40 PSI | MAX LIFT | Shut-Off Pressure | MAXIMUM INLET PRESSURE | PRESSURE SWITCH SETTING | SUCTION SIZE | DRIVE SIZE | DISCHARGE SIZE | AMP DRAW full load | Voltage | RECOMMENDED BREAKER | MAXIMUM WATER TEMPERATURE | Impeller |
Item # QD75S | Body Construction | Horsepower 3/4 | MAXIMUM CAPACITY | FLOW at 10-foot LIFT and 40 PSI | MAX LIFT | Shut-Off Pressure | MAXIMUM INLET PRESSURE | PRESSURE SWITCH SETTING | SUCTION SIZE | DRIVE SIZE | DISCHARGE SIZE | AMP DRAW full load | Voltage | RECOMMENDED BREAKER | MAXIMUM WATER TEMPERATURE | Impeller |
Item # QD100S | Body Construction | Horsepower 1 | MAXIMUM CAPACITY | FLOW at 10-foot LIFT and 40 PSI | MAX LIFT | Shut-Off Pressure | MAXIMUM INLET PRESSURE | PRESSURE SWITCH SETTING | SUCTION SIZE | DRIVE SIZE | DISCHARGE SIZE | AMP DRAW full load | Voltage | RECOMMENDED BREAKER | MAXIMUM WATER TEMPERATURE | Impeller |
