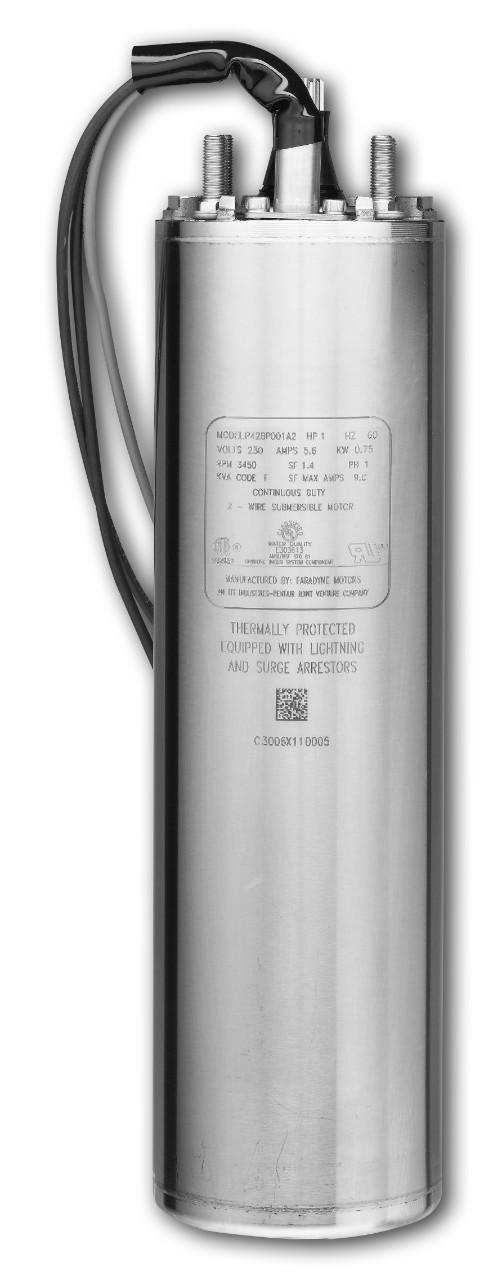

The Pentek XE Series 4" submersible high-thrust motors are built with the latest design, manufacturing and testing technology. They feature laser-welded 304L stainless steel construction, higher thrust capacities and higher efficiencies. The Pentek XE Series submersible motors incorporate "encapsulated, epoxy stator design," and professional-grade Class F insulation provides longer life in harsh environments. Each motor is 100% factory pressure and run tested to support our quality standards.
- 700# rated Kingsbury thrust bearings are standard on all HPs, allowing for higher thrust loads, providing many years of trouble-free service under sever-duty operation
- 2-Wire Permanent Split Capacitor design insures quiet operation and improved operating efficiency
- 3-Wire motors operate with Pentek SMC and other single-phase motor controls
- All stainless steel exterior
- Professional-grade class F compliant motor insulation allows for longer service life
- 100% Factory pressure and run tested
- Equipped with surge arrestor
- Automatic thermal protection on 1/2 thru 1 HP models
