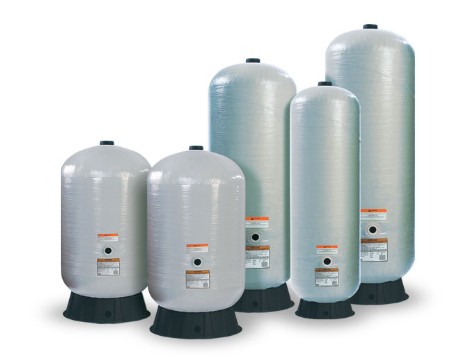

Pro-Source SidePort Composite Contact Tank is constructed of all NSF / FDA listed materials, these SidePort fibrewound tanks contain no harmful traces of metal that could pass into your water.
- Superior Design Composite Construction
- Environmentally Safe and 100% Lead-Free
- 10% More Drawdown Efficiency than Similar-Sized Conventional Tanks
- Additional urethane Coating
RESOURCES
SPECIFICATION
| Item # | THESE ARE SERIES SPECS | INNER LINER | OUTER SHELL | UPPER and LOWER FLANGES | BASE | SERVICE CONNECTIONS | UNIT SHIP WEIGHT LBS KG | HEIGHT SIDEPORT TO FLOOR INCH CM | HEIGHT INLET OUTLET TO FLOOR INCH CM | OVERALL HEIGHT INCH CM | DIAMETER INCH CM | DRAWDOWN 30-50 SETTING GAL LITER | MAX CAPACITY GAL LITER |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Item # SP Series - Myers | THESE ARE SERIES SPECS See Spec Sheets for Model-Specific Details | INNER LINER One-Piece High-Density Polyethylene | OUTER SHELL Fiberglass Wound and Epoxy Resin Sealed | UPPER and LOWER FLANGES Reinforced Polypropylene | BASE One Piece ABS | SERVICE CONNECTIONS Reinforced Polypropylene | UNIT SHIP WEIGHT LBS KG 26 / 11.8 to 300 / 136.4 | HEIGHT SIDEPORT TO FLOOR INCH CM 14 / 35.6 to 31.5 / 80.0 | HEIGHT INLET OUTLET TO FLOOR INCH CM 1.5 / 3.8 to 7 / 17.8 | OVERALL HEIGHT INCH CM 43.75 / 111 to 82 / 208 | DIAMETER INCH CM 16 / 41 to 36 / 91 | DRAWDOWN 30-50 SETTING GAL LITER 7 / 26 to 50 / 189 | MAX CAPACITY GAL LITER 30 / 114 264 / 999 |
