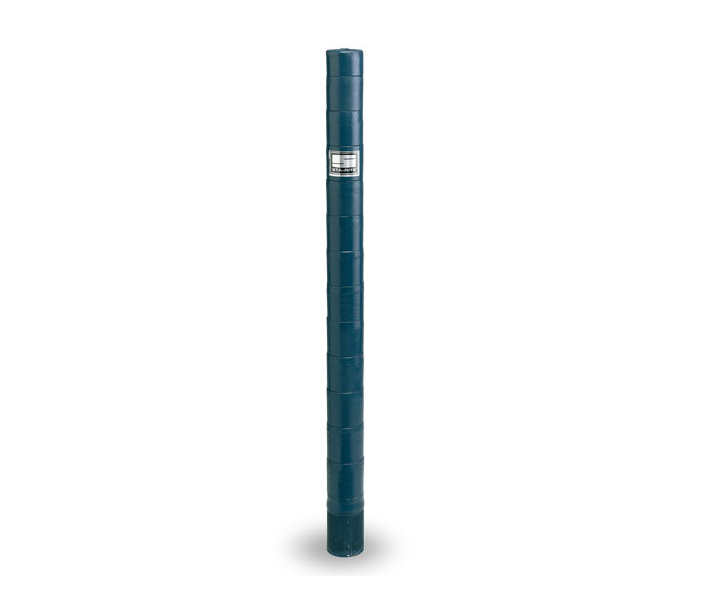

Precision-engineered, quality built, and rugged 70 GPM Series submersibles may be used in wells 4" or larger.
KEY FEATURES
- Heavy duty cast iron discharge provides smooth water passage to column pipe
- Standard NPT threads
- Glass-reinforced polycarbonate impellers resist abrasives and provide smooth water passages for minimum friction loss. Ensures optimum pump efficiency
- Bronze upthrust bearing provides positive momentary upthrust protection during start-up
- Efficient hydraulic intake design minimizes entrance losses, ensuring maximum pump performance
- Precision straightened stainless steel pump shaft
- Stainless steel pump/motor coupling
- Stainless steel intake screen offers maximum corrosion resistance
WARRANTY
1-year limited warranty
PERFORMANCE CURVE
RESOURCES
SPECIFICATION
HORSEPOWER: Available in 1-1/2 thru 10 HP
NUMBER OF STAGES: 4 to 23 (model dependent)
VOLTAGE: 230v 1- or 3-phase, or 460v 3-phase
NUMBER OF WIRES: 2- or 3- wires (plus ground)
DIAMETER: 3-7/8"
LENGTH: 20-3/4" to 83-1/8" (pump end only)
DISCHARGE: Cast iron, ASTM A48 Class 30, 2" NPT
WEIGHT: 26 to 106 lbs (pump end only)
UPTHRUST BEARINGS: Bronze, ASTM B255 Type II
IMPELLERS: Polycarbonate with Brass Insert
PUMP BOWLS: Cast iron, ASTM A48Class 30
SHAFT END COUPLING: Stainless Steel, AISI 416
INTAKE BRACKET: Cast iron, ASTM A48 Class 30
INTAKE SCREEN: Stainless steel, AISI 430
CABLE GUARD: Stainless steel, AISI 430
